Product Features：

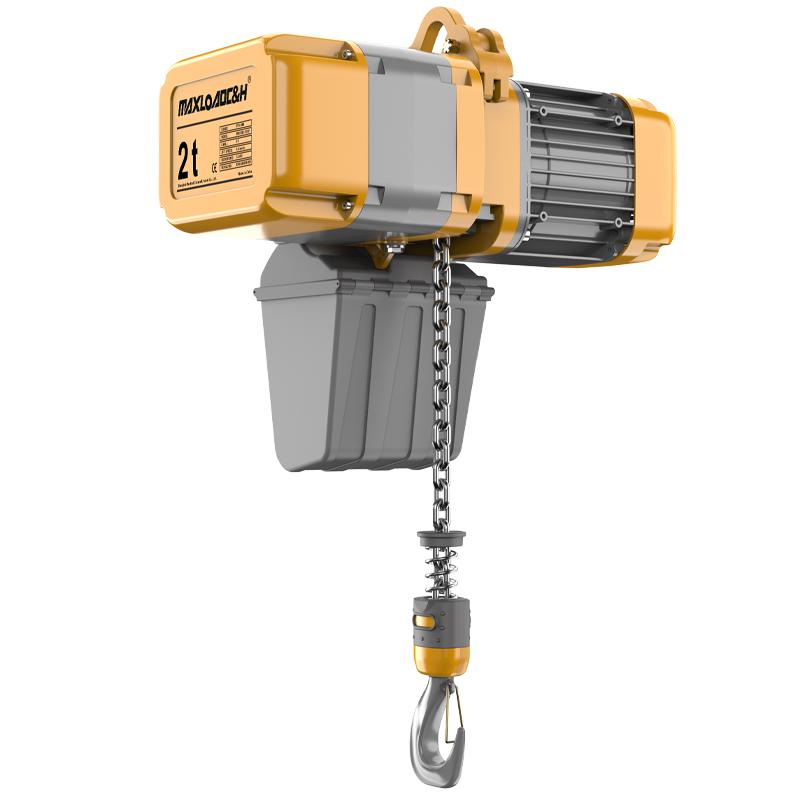

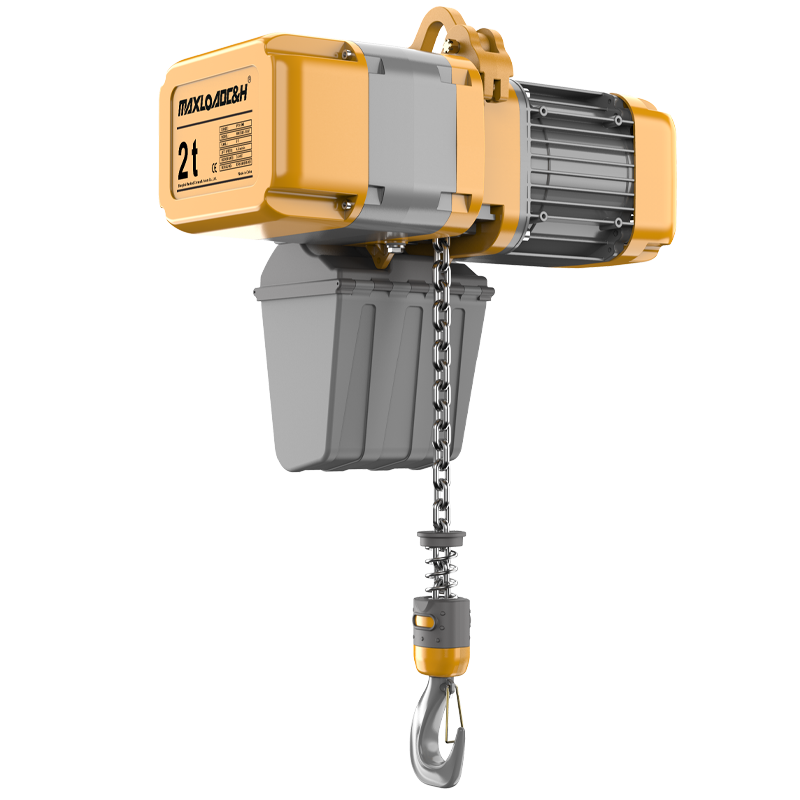

2 Ton Double Speed Hook Suspension Electric Chain Hoist Hook Suspension Type

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.


Products Parameter：

Capacity	Model NO	Lifting Speed	Lifting Out put	Standard Lift Height	*Diameterfalls**	Voltage	Test Load	Net weight
（kg)	Model NO	m/min	kw	(m)	(mm)	(V)	(kg)	(kg)
1000kg	HHER01-01DS	6.7/2.2	1.5/0.6	4	Φ7.1*21 x 1	3 phase 220-440V 50-60Hz	1250kg	55
2000kg	HHER02-01DS	6.7/2.2	3.0/1.1	4	*ᴓ10.030x1**		2500kg	95
2000kg	HHER02-02DS	3.3/1.0	1.5/0.6	4	*ᴓ7.1212*		2500kg	95
3000kg	HHER03-01DS	5.5/1.8	3.0/1.1	4	Φ11.2*34 x 1		3750kg	95
	HHER03-02DS	3.0/1.1	3.0/1.1	4	ᴓ10.0*30X2			95
	HHER03-03DS	2.2/0.7	1.5/0.6	4	ᴓ7.1*21X3			95
5000kg	HHER05-02DS	2.7/0.8	3.0/1.1	4	Φ11.2*34 x 2		6250kg	145

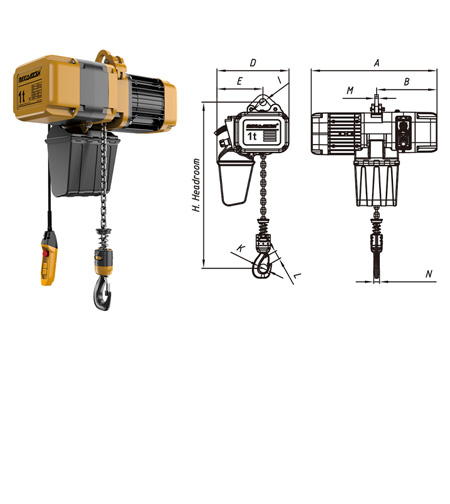

Products Drawing：

Capacity(kg)	Model NO	H(mm）	A(mm）	B(mm）	D(mm）	E(mm）	I(mm）	M(mm）	N(mm）	K(mm）
1000kg	HHER01-01DS	400	590	298	300	ᴓ31	ᴓ40	31	24	142
2000kg	HHER02-01DS	560	699	350	320	ᴓ36	ᴓ49	35	30	142
2000kg	HHER02-02DS	660	590	298	300	ᴓ36	ᴓ49	35	30	142
3000kg	HHER03-01DS	710	699	350	465	ᴓ43	ᴓ59	42	35	142
	HHER03-02DS	680	699	350	320	ᴓ43	ᴓ59	42	35	142
	HHER03-03DS	680	590	298	320	ᴓ43	ᴓ59	42	35	142
5000kg	HHER05-02DS	940	699	350	465	ᴓ54	ᴓ60	45	43	142
