Product Features：

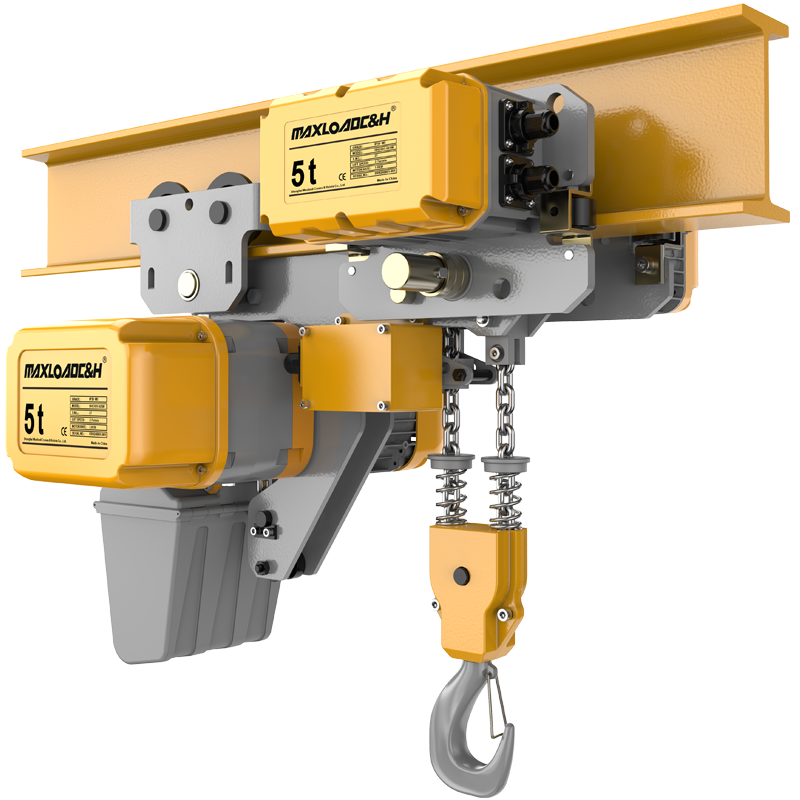

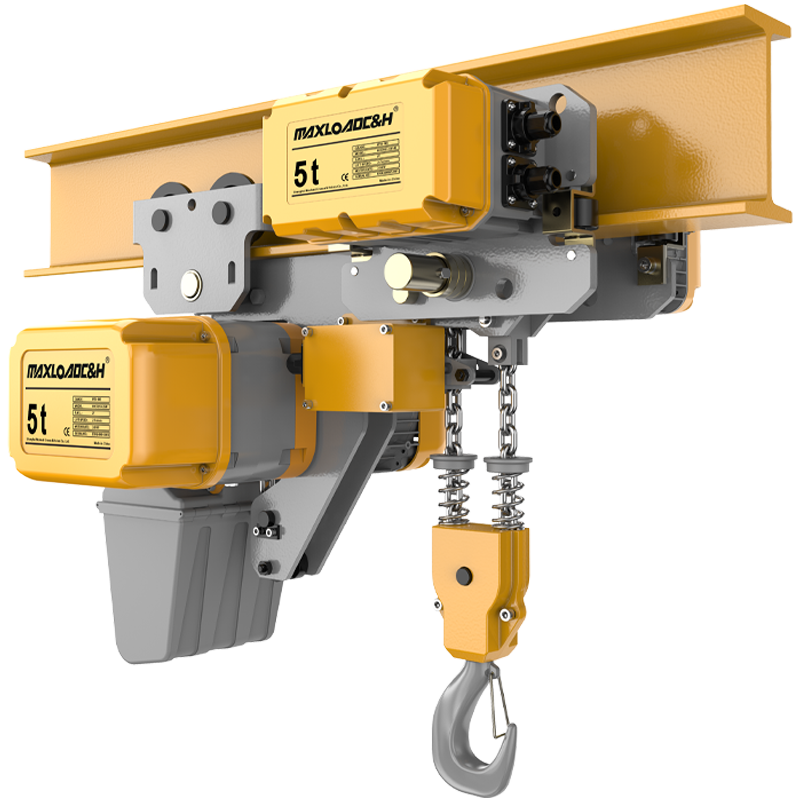

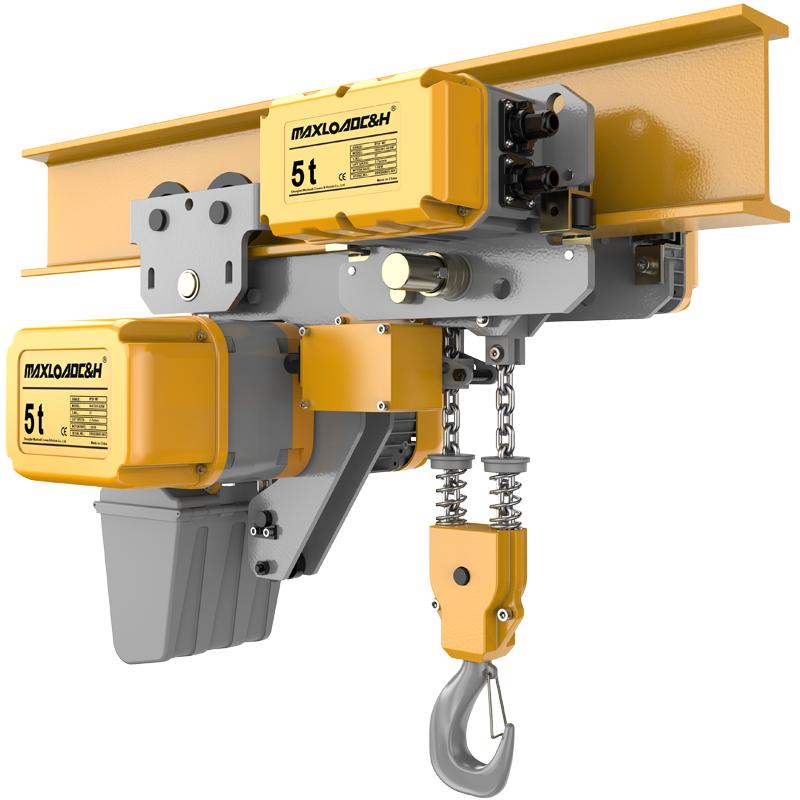

5 Ton Double Speed Low-headroom Electric Chain Hoist with Motorized Trolley

Maxloadc&h is the OEM/ODM manufacture of electric chain hoists ,the products are small in size, low in noise, smooth in operation, and flexible in operation.

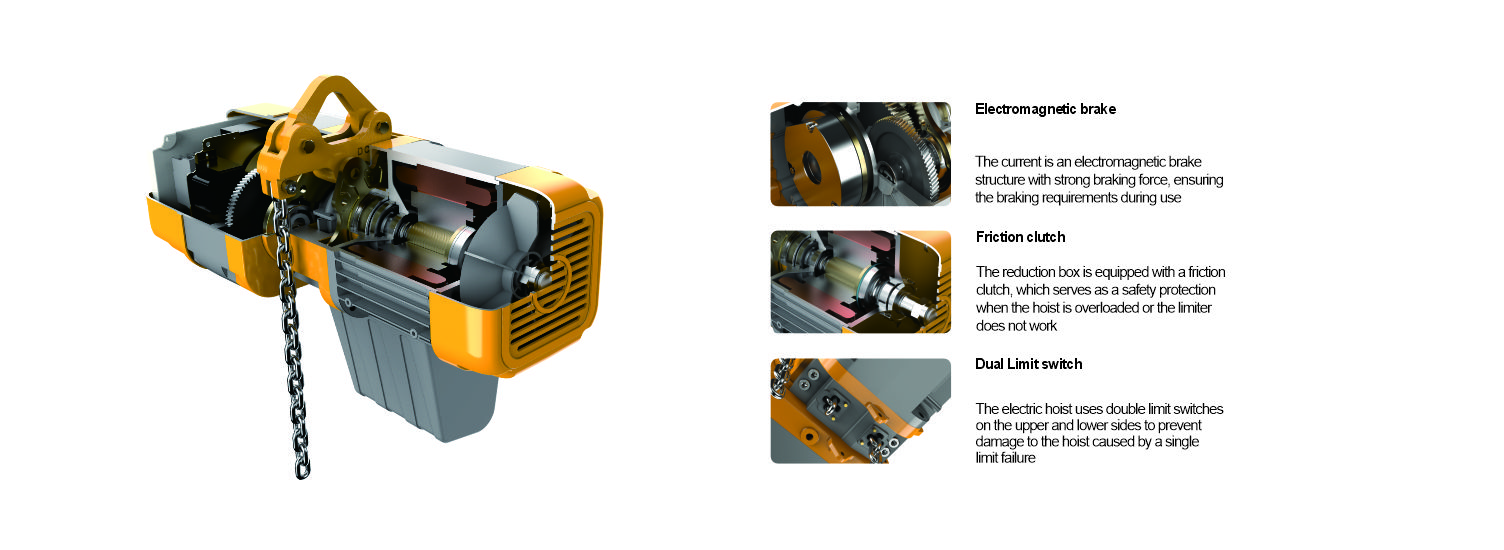

HHER Strcture 定稿.jpg

Products Parameter：

Capacity	Model NO	Lifting Speed	Lifting Out put	Standard Lift Height	*Diameterfalls**	Voltage	Test Load	Net weight
（kg)	Model NO	m/min	kw	(m)	(mm)	(V)	(kg)	(kg)
1000kg	HHER01-01DL	6.7/2.2	1.5/0.6	4	Φ7.1*21 x 1	3 phase 220-440V 50-60Hz	1250kg	90
2000kg	HHER02-01DL	6.7/2.2	3.0/1.1	4	ᴓ10.0*30x1		2500kg	135
2000kg	HHER02-02DL	3.3/1.0	1.5/0.6	4	ᴓ7.1212		2500kg	135
3000kg	HHER03-01DL	5.5/1.8	3.0/1.1	4	Φ11.2*34 x 1		3750kg	145
	HHER03-02DL	3.0/1.1	3.0/1.1	4	ᴓ10.0*30x 2			145
	HHER03-03DL	2.2/0.7	1.5/0.6	4	ᴓ7.1*21x3			145
5000kg	HHER05-02DL	2.7/0.8	3.0/1.1	4	*Φ11.234 x 2**		6250kg	220

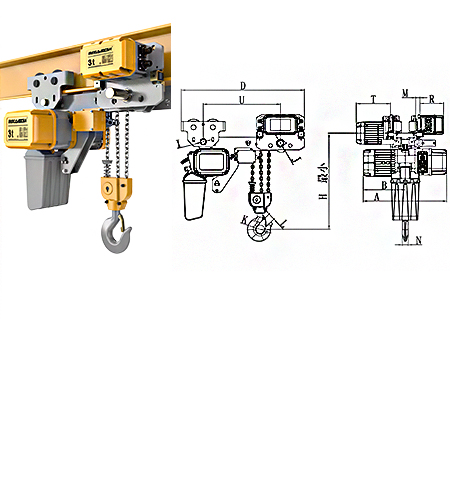

Products Drawing：

Capacity(kg)	Model NO	H(mm）	A(mm）	B(mm）	D(mm）	J(mm）	K(mm）	L(mm）	N(mm）	T(mm）
1000kg	HHER01-01DL	397	590	298	725	31.5	42	32	25	242
2000kg	HHER02-01DL	470	699	350	865	31.5	52	42	35	242
2000kg	HHER02-02DL	480	590	298	730	31.5	52	42	35	242
3000kg	HHER03-01DL	500	699	350	892	36.5	59	48	34	242
	HHER03-02DL	570	699	350	880	36.5	59	48	34	242
	HHER03-03DL	555	590	298	865	36.5	59	48	34	242
5000kg	HHER05-02DL	605	699	350	930	43.5	60	48	44	242
